HT2430 Portable DR detector


HT2430
-- HT2430 is a 76 µm high-precision Portable DR detector of HATATEST brand
-- HT2430 flat panel detector can be used not only for industrial non-destructive testing of steel plates and pipes

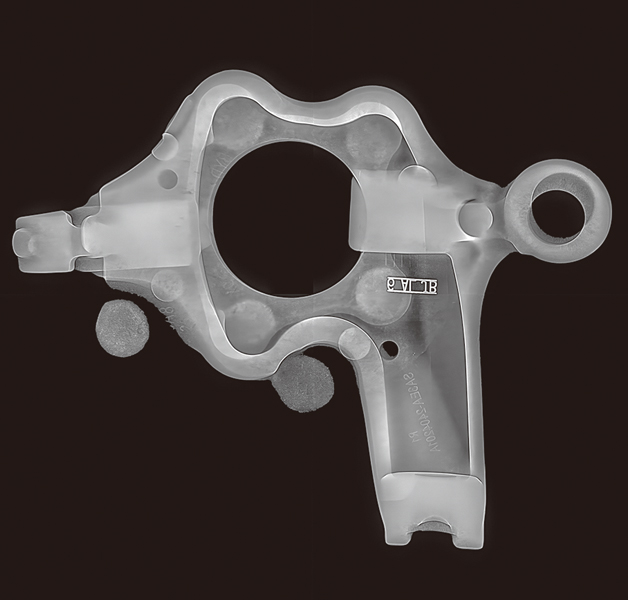

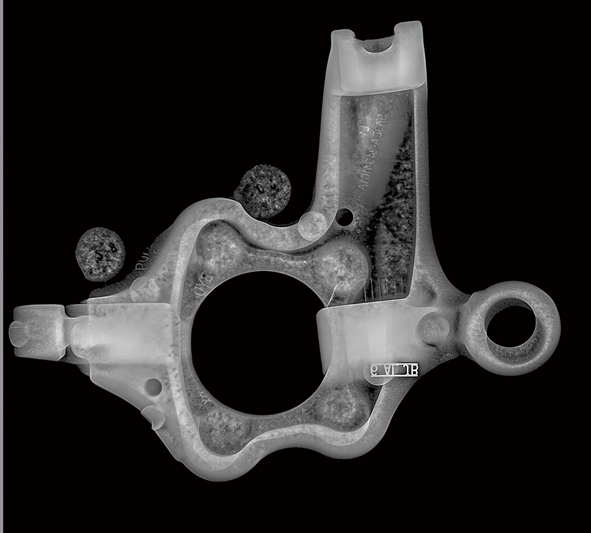

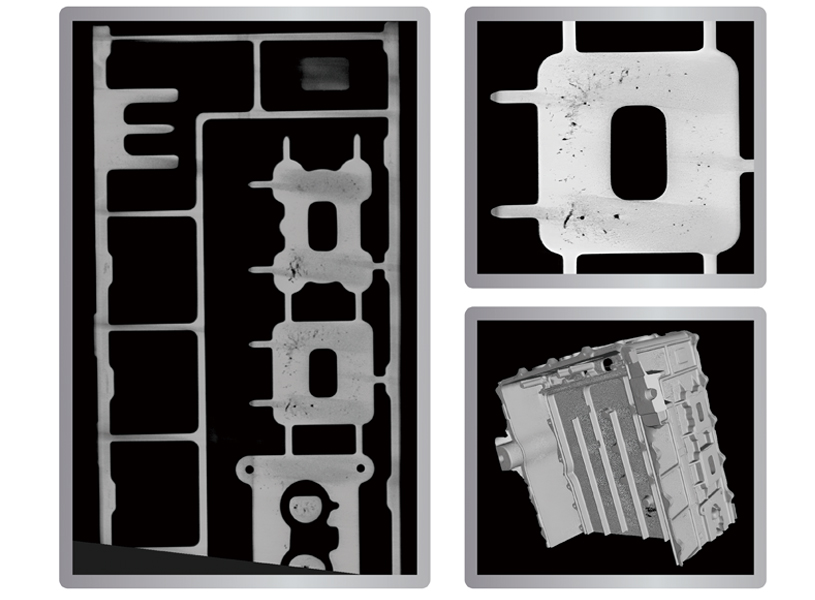

-- HT2430 also for digital imaging of precision components such as batteries, circuit boards, and electronic components
-- Powerful HTSW7.0 software which specially designed for industry NDT
-- Based on ISO 17636 specification

HT2430 is a 76 µm high-precision Portable DR detector of HATATEST brand. The HT2430 flat panel detector can be used not only for industrial non-destructive testing of steel plates and pipes, but also for digital imaging of precision components such as batteries, circuit boards, and electronic components.

System Standard Products

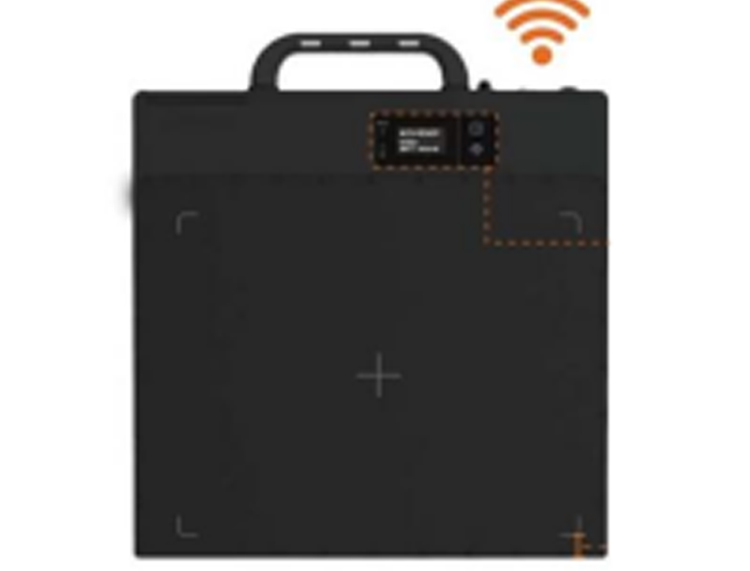

  • HT2430 flat panel detector

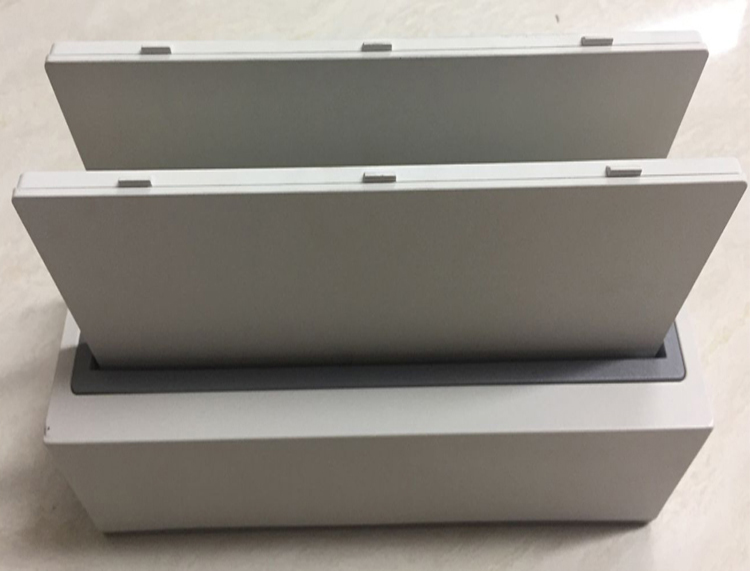

  • Battery pack
  • 30 meters of net cable

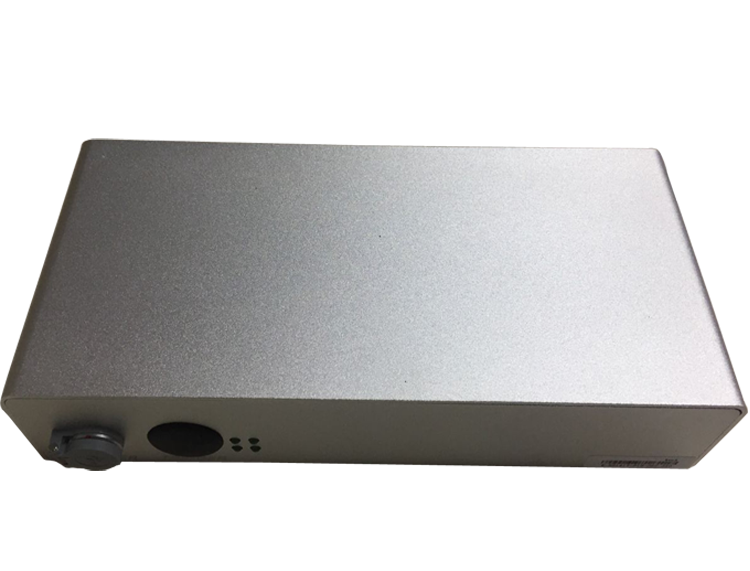

  • Cable power box

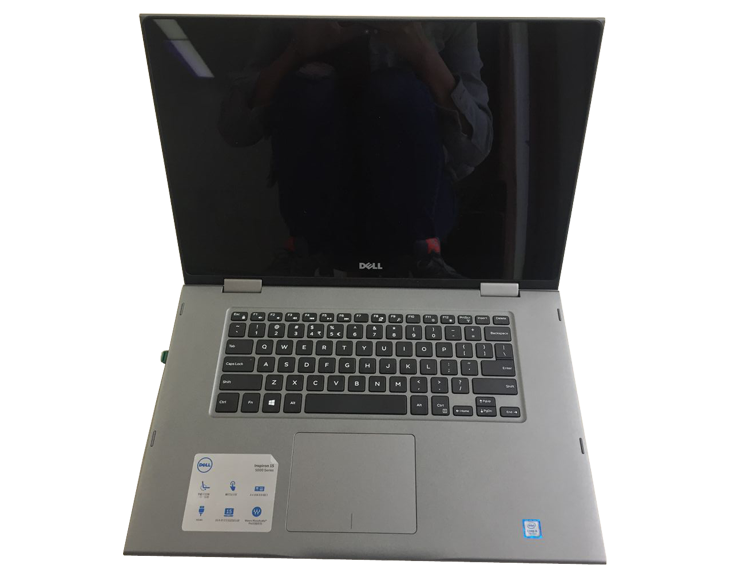

  • Laptop Computer ,Including Image Processing Software
  • Packing box
  • Mouse

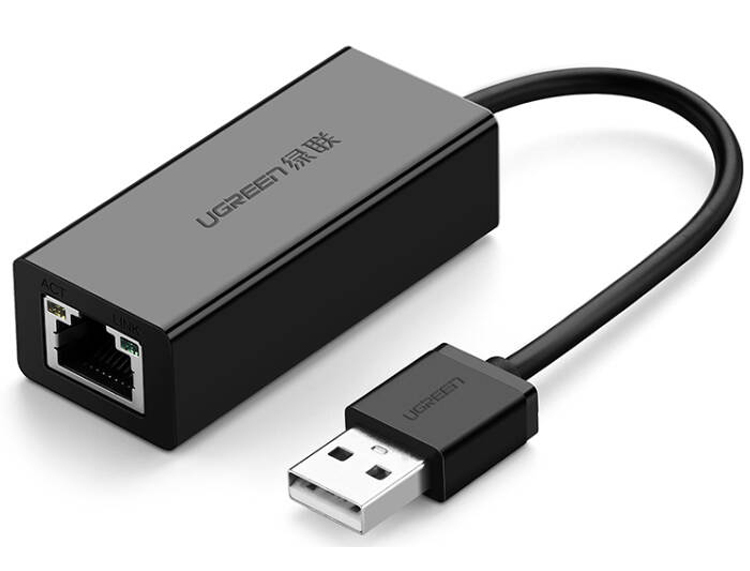

  • USB Wire Converter
  • Router (power supply, connection line)

The specification of HT2430 Portable DR detector :

  • Technology
    A-Si TFT with photodiode
  • Scintillator
    Gd2O2S:Tb
  • Imaging area size(mm)
    291*233
  • Pixel Matrix (Resolution)
    3840(V) x 3072(H)
  • Pixel pitch(µm)
    76 152(Binning)
  • Limiting Resolution(lp/mm)
    6.5
  • A/D conversion
    16-bit
  • Energy Range
    -300kvp
  • Trigger Mode
    1.Software TRG (Manual Start by software Trigger); AED (Automatic Exposure Detection)
  • Input Voltage
    DC+12V, 7A(max)
  • Power Consumption
    1.Operating with Charging :35W(max); Operating: 24W (max)
  • Data Interface
    1.1G-Ethernet; WIFI(802.11n) 2x2 MIMQ
System Selection Products
  • DR imaging evaluation system
  • X ray generator
  • Steel pipe crawlers
  • FPD supporter
  • Radiation alarm
