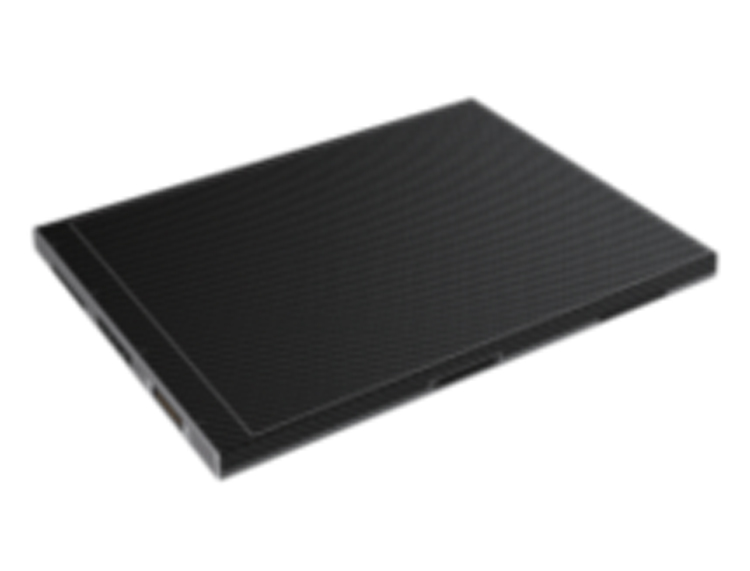

Me100 is a wireless portable flat panel detector based on amorphous silicon sensor technology. The detector is designed for industrial standards, sturdy and durable, with high radiation resistance, wide environmental adaptability, high reliability and other characteristics. Data and signal communication can be achieved through wired or wireless interfaces.

--Dynamic continuous real-time imaging, allowing real-time viewing of image indicators and timely adjustment of radiographic parameters (optional in both dynamic and static modes)
--33CM length, straight seam provides a larger field of view, weight ≤ 5Kg
--100µm pixel, maximum 5.0Lp/mm line pair, ultra-high D11 level image
--Intelligent algorithm suppresses stripes, adapts to any frequency converter/high-frequency machine, simple and easy to use
--WIFI6 ultra long transmission of over 100m
--Battery life exceeds 8 hours
--Military grade IP67 waterproof and dustproof, easy to cope with harsh environments

Specification of Me100 Portable DR detector :

• Detector type
  Amorphous Silicon
• Scintillation type
  Csl/GOS
• Pixel size
  100µm
• Pixel matrix
  2528x3318
• Effective imaging area (mm2)
  252.8x331.8
• Spatial resolution (lp/mm)
  5
• AD conversion bit count (bit)
  16
• Maximum frame rate (fps)
  1
• Maximum exposure window (s)
  180
• Wired data interface:
  GigE (≥100 Mbps ); Wireless: 802.11 a/g/n (≥100mbps )
• Trigger mode
  AED/soft trigger
• X-ray energy rangeV
  ~370K
• protection level
  IP65
• sIZE(MM3)
  269x362x16
• Car charging
  available
• Weight(kg)
  4.8
• Power consunmption(W)
  ﹤17
• Operating temperature(℃)
  5~50
• Srorage temperature(℃)
  -25~60
• Operating humidity(%RH)(no condensation)
  5~90
• Srorage humidity(%RH)(no condensation)
  5~95
