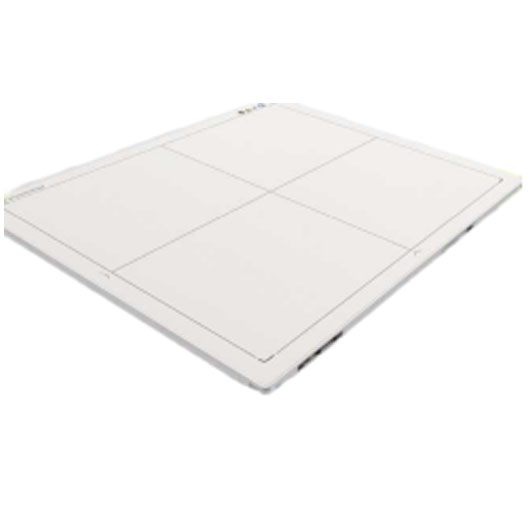

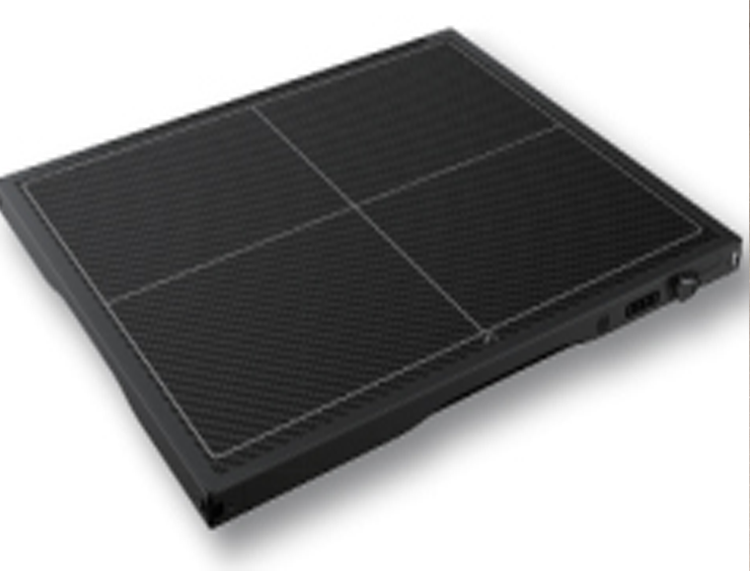

Me 1417 is a wireless portable flat panel detector based on amorphous silicon sensor technology. The detector is designed for industrial standards, sturdy and durable, with high radiation resistance, wide environmental adaptability, high reliability and other characteristics. Data and signal communication can be achieved through wired or wireless interfaces.

--35x43 cm2 imaging area
--100 µm pixel size
--16 bit ADC high-definition image details
--180 second exposure window
--Wired and 5G wireless data interfaces
--Thin and lightweight design
--Battery life exceeds 6 hours

Specification of Me 1417 Portable DR detector

• Detector type

• Scintillation type
  GOS
• Pixel size
  100um
• Pixel matrix
  3500x4300
• Effective imaging area(mm2)
  350x430
• Spatial resolution(lp/mm)
  5
• AD conversion bit count (bit)
  16
• Maximum frame rate (fps)
  /
• Maximum exposure window (s)
  180
• Wired data interface:
  GigE (≥100 Mbps ); Wireless: 802.11 a/g/n (≥100mbps )
• Trigger mode
  soft trigger
• X-ray energy rangeV
  40 kV~300 k
• Protection level
  IP65
• Size (mm3)
  465x390x20
• Car charging
  available
• Weight(kg)
  4.2
• Power consumption (W)
  ﹤20
• Operating temperature (℃)
  -20~50
• Storage temperature (℃)
  -20~55
• Operating humidity (% RH) (no condensation)
  10~90
• Storage humidity (% RH) (no condensation)
  5~95
