HTJW1012D
HTJW1012D
-- Both Dynamic imaging and static imaging. support High-speed moving weld real time inspection (no less than 6 meters per minute speed).
-- support Dynamic superposition,get more clearer image.
-- 4.0 lp/mm High resolution
-- Can match any type of X ray machine , can work with variable-frequency X RAY Generator
-- Powerful HTSW7.0 software which specially designed for industry NDT
-- Based on ISO 17636 specification
-- support Dynamic superposition,get more clearer image.
-- 4.0 lp/mm High resolution
-- Can match any type of X ray machine , can work with variable-frequency X RAY Generator
-- Powerful HTSW7.0 software which specially designed for industry NDT
-- Based on ISO 17636 specification
HTJW1012D Portable Digital Radiographic system is a real industry DR system for NDT . HATATEST HTJW1012D DR flat panel detector is the only one that can match variable-frequency X RAY Generator all over the world.
Additionally, HTJW1012D portable DR flat panel detector support both Dynamic imaging and static imaging.So, HTJW1012D DR panel support High-speed moving weld real time inspection (no less than 6 meters per minute speed).
System Standard Products
-

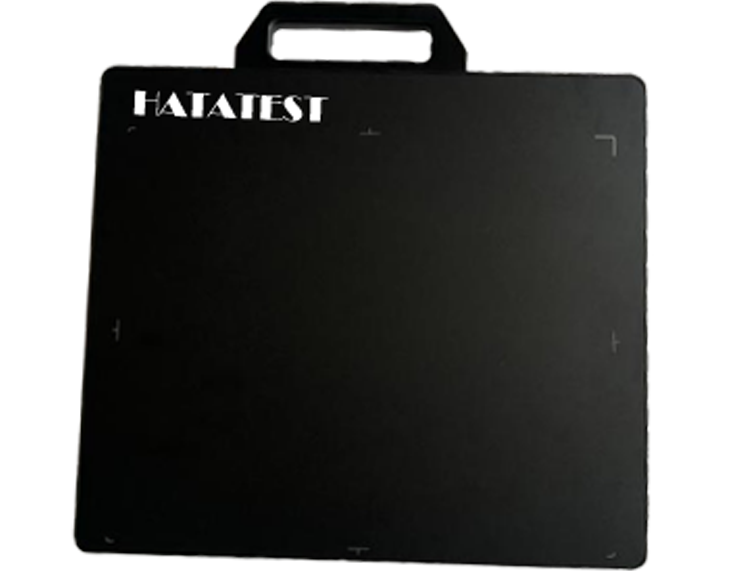

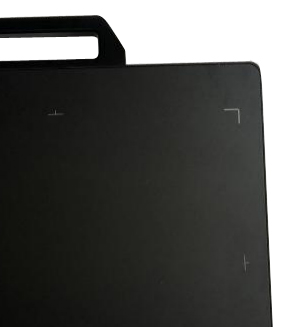

One HTJW1012D flat panel detector with Handle
-

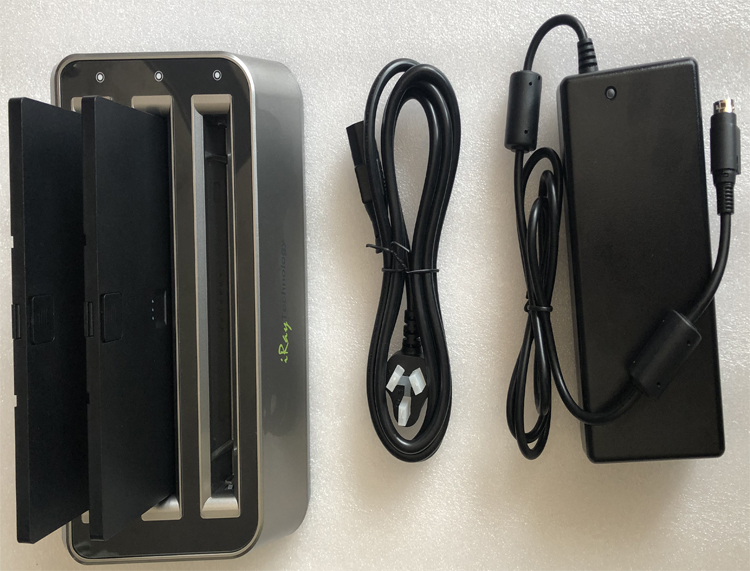

Battery pack
-

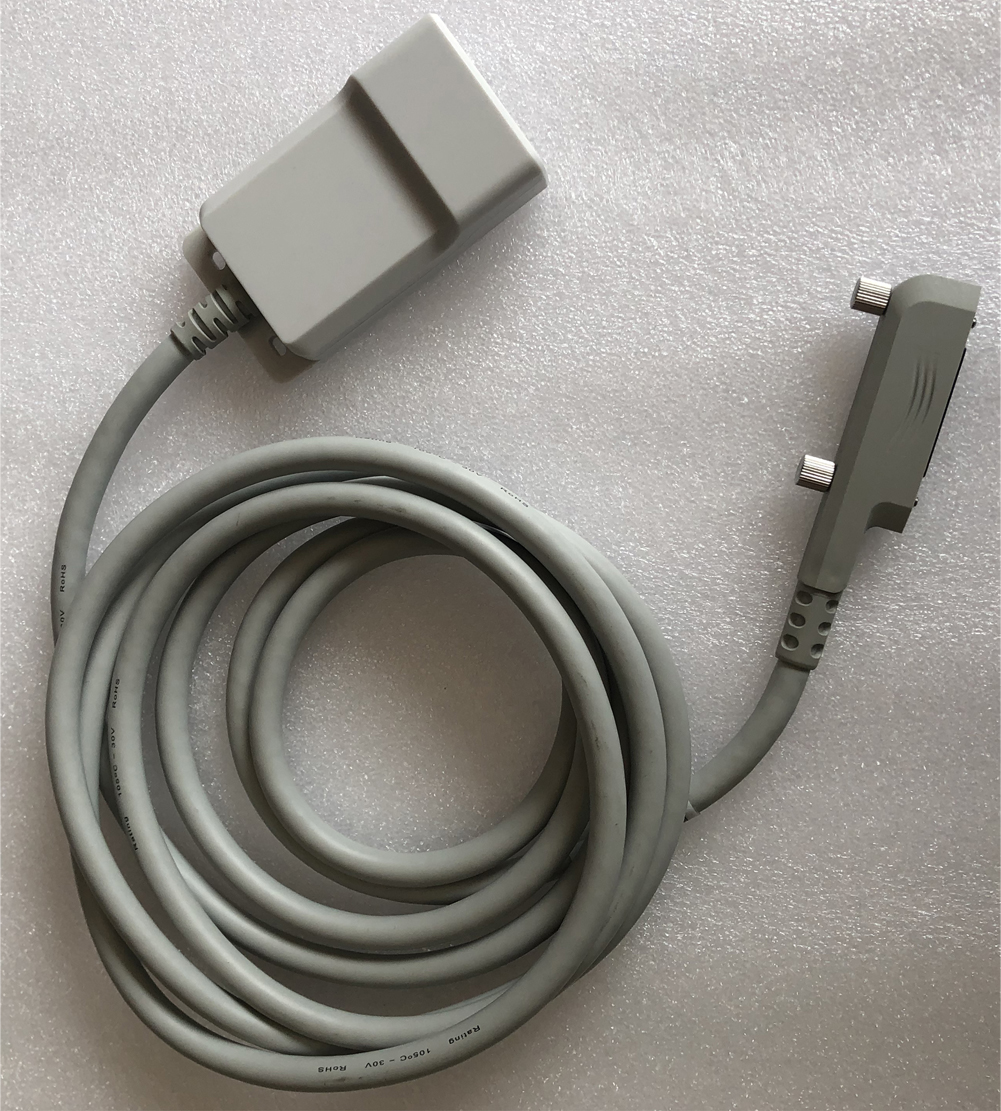

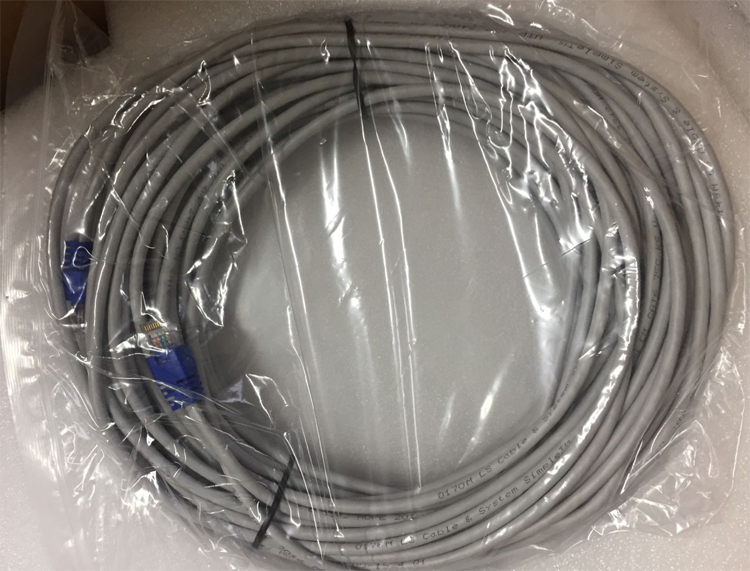

30 meters of net cable
-

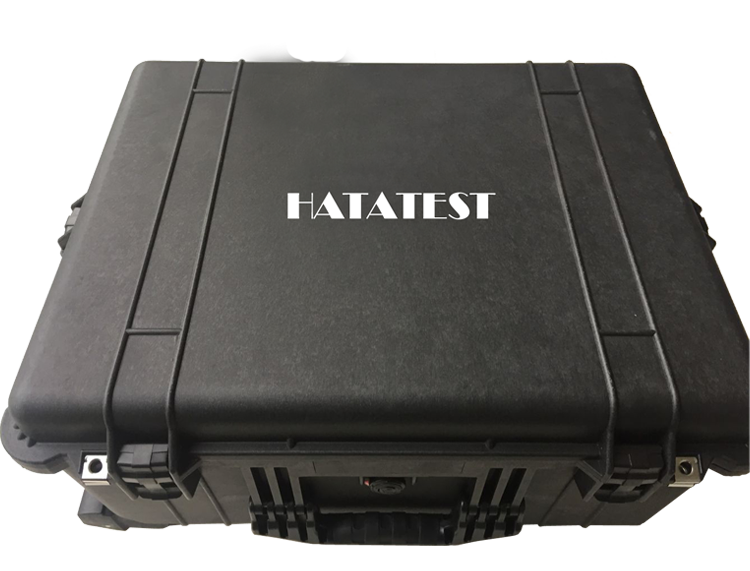

Packing box
-

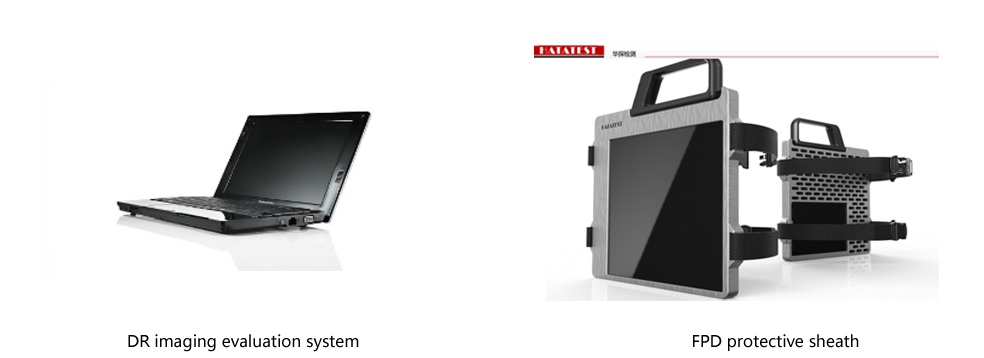

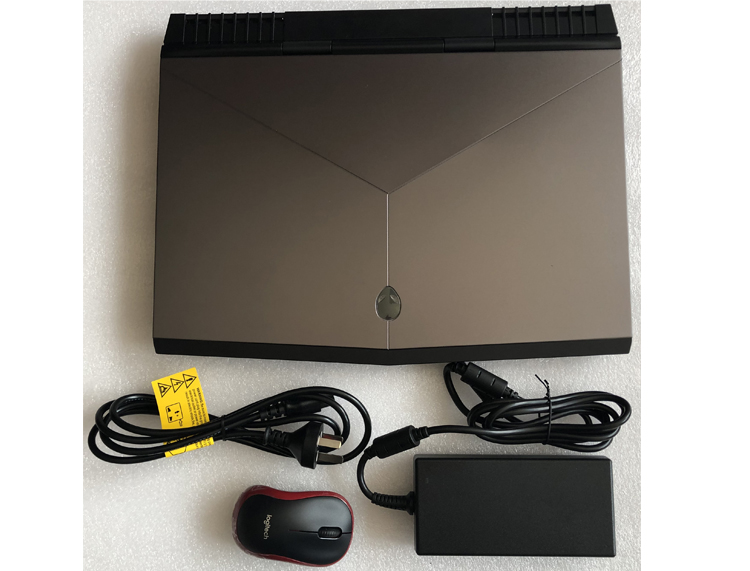

Laptop Computer (Including Charger, Mouse) Including Image Processing Software
-

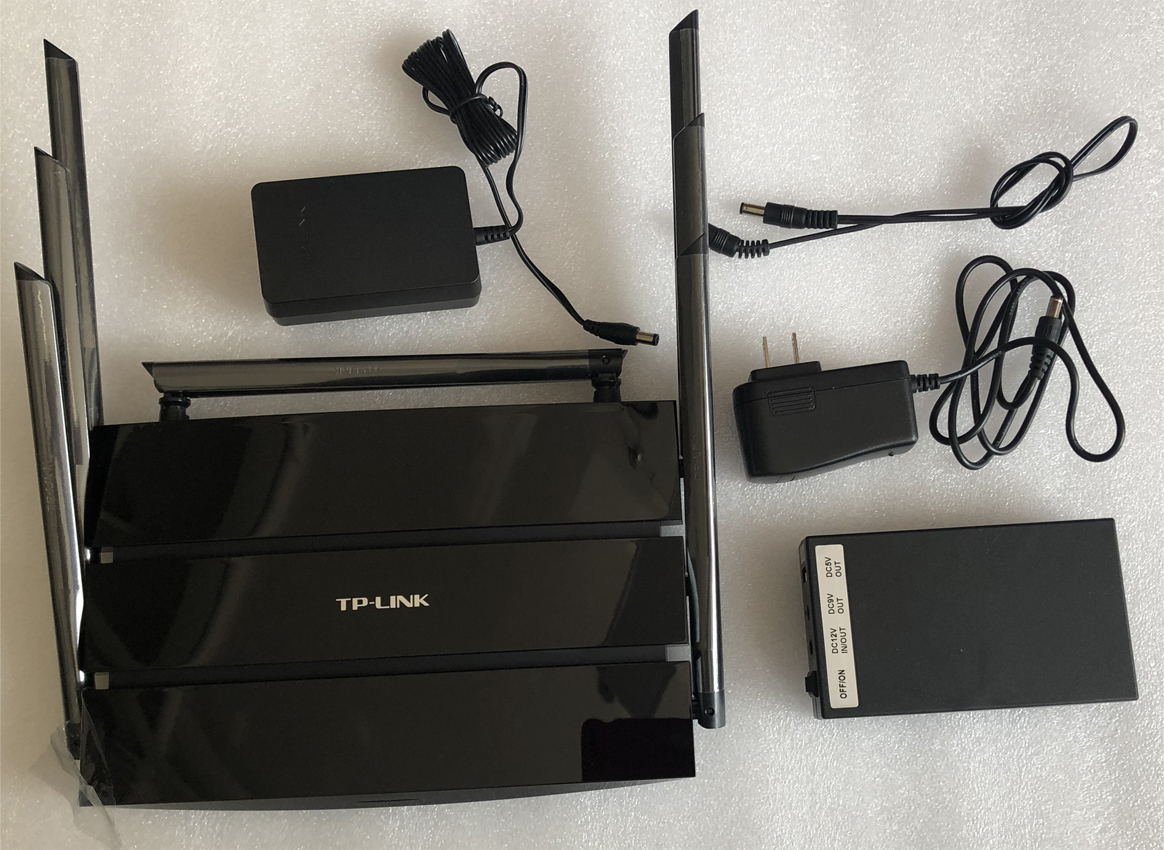

Router (including power supply, connection line)
-
HTJW1012D Flat panel direct connection
HTJW1012D is a Industry Digital Flat Panel for NDT. The Feature of HTJW1012D Industry DR Panel system are:
-
ScintillatorGOS/CSI
-
Pixel Pitch125μm
-
Size340×298×17mm
-
Imaging area300×250mm
-
Pixel matrix2400×2000
-
Limiting Resolution4.0Ip/mm
-
A/D16bit
-
Energy Range40-330kv
-
Working temperature-10℃-40℃
-
InterfaceGigabit Ethernet
-
Weight3.0kg

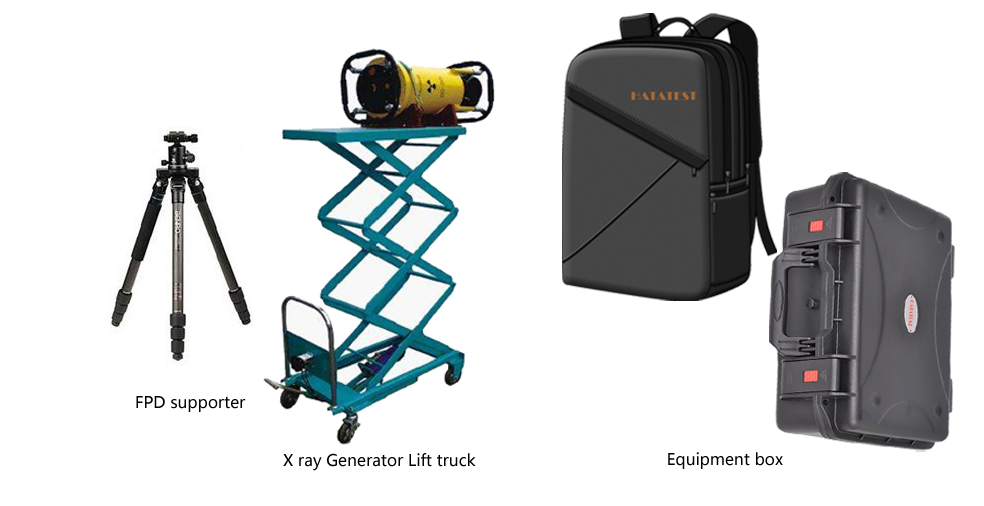

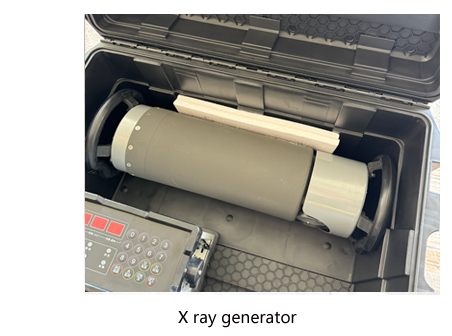

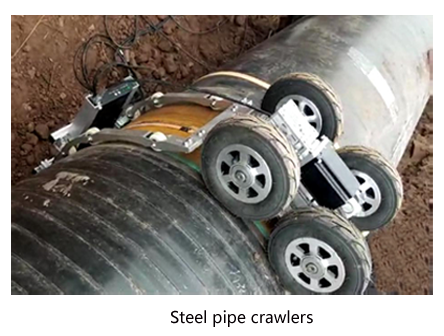

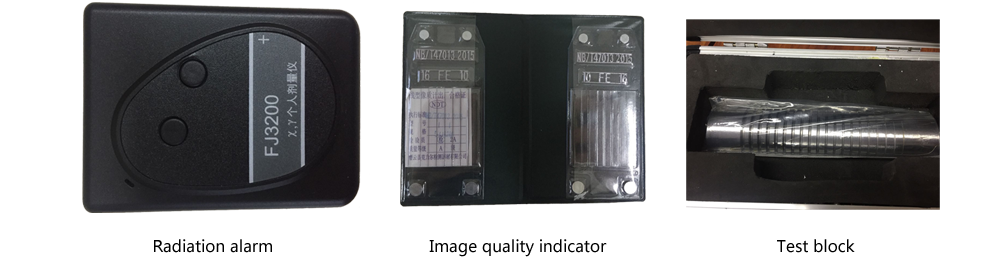

System Selection Products
-
