HTJW-1012-BP
HTJW-1012-BP
-- HTJW-1012-BP is the cheapest digital radiography kit in the world.
-- Support Both Dynamic imaging and static imaging. support High-speed moving weld real time inspection (no less than 6 meters per minute speed).
-- support Dynamic superposition,get more clearer image.
-- Can match any type of X ray machine , can work with variable-frequency X RAY Generator
-- Powerful HTSW7.0 software which specially designed for industry NDT
-- Based on ISO 17636 specification
-- Support Both Dynamic imaging and static imaging. support High-speed moving weld real time inspection (no less than 6 meters per minute speed).
-- support Dynamic superposition,get more clearer image.
-- Can match any type of X ray machine , can work with variable-frequency X RAY Generator
-- Powerful HTSW7.0 software which specially designed for industry NDT
-- Based on ISO 17636 specification
HTJW-1012-BP is the cheapest portable industry DR system including X ray source | x ray machine. HTJW-1012-BP DR system is Composed of HTJW1012D flat panel system and HT2505D-JW80 X ray generator.
One of HATATEST Patent technology was used in HTJW-1012-BP Portable DR system.Just because of this worldwide Unique technology,HATATEST helped their customer to save more than 30% cost for industry NDT. HATA digital imaging NDT system is the only digital imaging NDT system who can match all the kinds of X ray machine in the world, including frequency conversion X ray machine
System Standard Products
-
One HTJW1012-BP flat panel detector with Handle
-

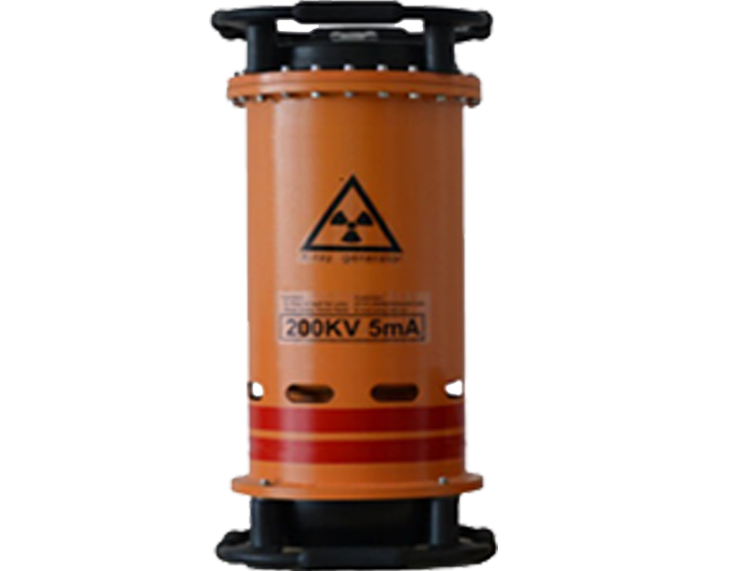

HTJW1012-BP X ray machine
-
Battery pack
-
30 meters of net cable
-
Laptop Computer (Including Charger, Mouse) Including Image Processing Software
-
Packing box
-
Router (including power supply, connection line)
-
HTJW1012D Flat panel direct connection
-
Optional X ray tube voltage50-350 kv
-
Maximum penetration thickness60mm
-
ScintillatorCsI
-
Active Area244mm*307mm
-
Pixel matrix2048*2560 (Full resolution mode)
-
Limiting Resolution4.16lp/mm
-
Pixel Pitch120㎛
-
A/D Conversion16bits
-
Interface(1)Wired : 1Gbps Ethernet;(2)Wireless : 802.11 a/g/n Wireless LAN
-
Frame frequency>1.5fps(2048*2560)
-
Dynamic range~82db
-
Dimension(W x L x H)333mm*282mm*26mm
-
Weight~2.3kg (5lb)
-
sheathing materialAluminium
-
Sensor protection materialCarbon fiber board
-
Temperature rangeLimit working temperature: -20 C to55 C
-
Humidity rangeWork: 30%to75%RH
-
Energy Range40-300kv
-
Power supply100-240V 50/60Hz AC
